Weirdsnake
Weirdsnake is a medium level reverse engineering CTF from pico - link
Challenge

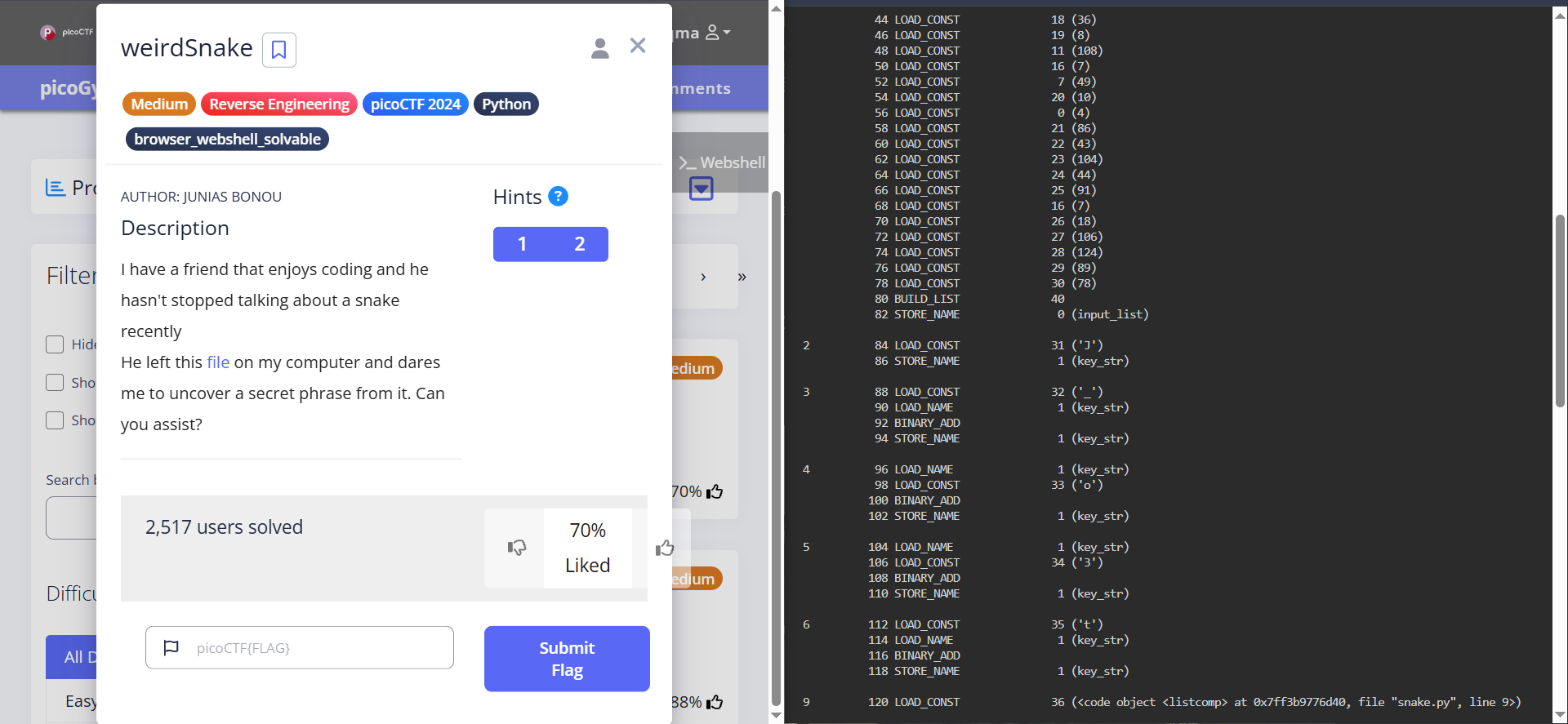

After downloading the file, which turned out to be python bytecode which I was completely unfamiliar with. I read a couple of articles that explained bytecode and helped me to understand it.
Python bytecode is the lower level representation of your python code, translated by the interpreter for efficiency.
So now, translating the bytcode into actual python code. Here’s the general syntax for the code.
line number | offset | instruction | arg | (value)
line numberwhich corresponds to line number of the original codeoffsetit’s offset to the original binary codeinstructionthe operation to be executedargthe argument to be passed to the instructionvaluethe value e.g variable name
Line 1
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
1 0 LOAD_CONST 0 (4)
2 LOAD_CONST 1 (54)
4 LOAD_CONST 2 (41)
6 LOAD_CONST 3 (0)
8 LOAD_CONST 4 (112)
10 LOAD_CONST 5 (32)
12 LOAD_CONST 6 (25)
14 LOAD_CONST 7 (49)
16 LOAD_CONST 8 (33)
18 LOAD_CONST 9 (3)
20 LOAD_CONST 3 (0)
22 LOAD_CONST 3 (0)
24 LOAD_CONST 10 (57)
26 LOAD_CONST 5 (32)
28 LOAD_CONST 11 (108)
30 LOAD_CONST 12 (23)
32 LOAD_CONST 13 (48)
34 LOAD_CONST 0 (4)
36 LOAD_CONST 14 (9)
38 LOAD_CONST 15 (70)
40 LOAD_CONST 16 (7)
42 LOAD_CONST 17 (110)
44 LOAD_CONST 18 (36)
46 LOAD_CONST 19 (8)
48 LOAD_CONST 11 (108)
50 LOAD_CONST 16 (7)
52 LOAD_CONST 7 (49)
54 LOAD_CONST 20 (10)
56 LOAD_CONST 0 (4)
58 LOAD_CONST 21 (86)
60 LOAD_CONST 22 (43)
62 LOAD_CONST 23 (104)
64 LOAD_CONST 24 (44)
66 LOAD_CONST 25 (91)
68 LOAD_CONST 16 (7)
70 LOAD_CONST 26 (18)
72 LOAD_CONST 27 (106)
74 LOAD_CONST 28 (124)
76 LOAD_CONST 29 (89)
78 LOAD_CONST 30 (78)
80 BUILD_LIST 40
82 STORE_NAME 0 (input_list)
This is the first segment of the bytecode, which represents line number 1 of the original code, and it defines a list called input_list with 40 values 4, 4, 41, 0, 112, 32, 25, 49, 33, 3, 0, 0, 57, 32, 108, 23, 48, 4, 9, 70, 7, 110, 36, 8, 108, 7, 49, 10, 4, 86, 43, 108, 122, 14, 2, 71, 62, 115, 88, 78
Converting this to python code we have
1
input_list = [4, 54, 41, 0, 112, 32, 25, 49, 33, 3, 0, 0, 57, 32, 108, 23, 48, 4, 9, 70, 7, 110, 36, 8, 108, 7, 49, 10, 4, 86, 43, 108, 122, 14, 2, 71, 62, 115, 88, 78]
Line 2
The second segment of the bytecode
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
2 84 LOAD_CONST 31 ('J')
86 STORE_NAME 1 (key_str)
3 88 LOAD_CONST 32 ('_')
90 LOAD_NAME 1 (key_str)
92 BINARY_ADD
94 STORE_NAME 1 (key_str)
4 96 LOAD_NAME 1 (key_str)
98 LOAD_CONST 33 ('o')
100 BINARY_ADD
102 STORE_NAME 1 (key_str)
5 104 LOAD_NAME 1 (key_str)
106 LOAD_CONST 34 ('3')
108 BINARY_ADD
110 STORE_NAME 1 (key_str)
6 112 LOAD_CONST 35 ('t')
114 LOAD_NAME 1 (key_str)
116 BINARY_ADD
118 STORE_NAME 1 (key_str)
This segment defines a variable key_str with the values t_Jo3 in that particular order (really important to note).
Rewriting it in python, it looks something like this
1
2
3
4
5
key_str = 'J'
key_str = '_' + key_str
key_str = key_str + 'o'
key_str = key_str + '3'
key_str = 't' + key_str
which can be shortened to one line
1
key_str = "t_Jo3"
line 3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
9 120 LOAD_CONST 36 (<code object <listcomp> at 0x7f5ef6665d40, file "snake.py", line 9>)
122 LOAD_CONST 37 ('<listcomp>')
124 MAKE_FUNCTION 0
126 LOAD_NAME 1 (key_str)
128 GET_ITER
130 CALL_FUNCTION 1
132 STORE_NAME 2 (key_list)
...
Disassembly of <code object <listcomp> at 0x7f5ef6665d40, file "snake.py", line 9>:
9 0 BUILD_LIST 0
2 LOAD_FAST 0 (.0)
>> 4 FOR_ITER 12 (to 18)
6 STORE_FAST 1 (char)
8 LOAD_GLOBAL 0 (ord)
10 LOAD_FAST 1 (char)
12 CALL_FUNCTION 1
14 LIST_APPEND 2
16 JUMP_ABSOLUTE 4
>> 18 RETURN_VALUE
Analysing this segment of code, we see that it takes the characters in the key_str list and puts its ASCII equivalent in a list key_list.
Rewriting this in python we have
1
key_list = [ord(char) for char in key_str]
Line 4 & 5
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
11 >> 134 LOAD_NAME 3 (len)
136 LOAD_NAME 2 (key_list)
138 CALL_FUNCTION 1
140 LOAD_NAME 3 (len)
142 LOAD_NAME 0 (input_list)
144 CALL_FUNCTION 1
146 COMPARE_OP 0 (<)
148 POP_JUMP_IF_FALSE 162
12 150 LOAD_NAME 2 (key_list)
152 LOAD_METHOD 4 (extend)
154 LOAD_NAME 2 (key_list)
156 CALL_METHOD 1
158 POP_TOP
160 JUMP_ABSOLUTE 134
I was initially confused if this segment was a while loop or an if-else statement. It turned out to be a while loop proved by the 160 JUMP_ABSOLUTE 134 line that ensures at the end it jumps back to the beginning of the function.
An if-else would have just continued on to the next line.
1
2
while len(key_list) < len(input_list):
key_list.extend(key_list)
Line 6
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
15 >> 162 LOAD_CONST 38 (<code object <listcomp> at 0x7ff3b9776df0, file "snake.py", line 15>)
164 LOAD_CONST 37 ('<listcomp>')
166 MAKE_FUNCTION 0
168 LOAD_NAME 5 (zip)
170 LOAD_NAME 0 (input_list)
172 LOAD_NAME 2 (key_list)
174 CALL_FUNCTION 2
176 GET_ITER
178 CALL_FUNCTION 1
180 STORE_NAME 6 (result)
Disassembly of <code object <listcomp> at 0x7ff3b9776df0, file "snake.py", line 15>:
15 0 BUILD_LIST 0
2 LOAD_FAST 0 (.0)
>> 4 FOR_ITER 16 (to 22)
6 UNPACK_SEQUENCE 2
8 STORE_FAST 1 (a)
10 STORE_FAST 2 (b)
12 LOAD_FAST 1 (a)
14 LOAD_FAST 2 (b)
16 BINARY_XOR
18 LIST_APPEND 2
20 JUMP_ABSOLUTE 4
>> 22 RETURN_VALUE
This segment of bytecode pairs up element from both the input_list and key_list, stores them as variables a and b, then performs a binary XOR operation on them and stores the results in a new list named result
Our resulting python code looks something like this.
1
result = [a^b for a,b in zip(input_list, key_list)]
Line 7
This is the last code segment
1
2
3
4
5
6
7
8
9
10
18 182 LOAD_CONST 39 ('')
184 LOAD_METHOD 7 (join)
186 LOAD_NAME 8 (map)
188 LOAD_NAME 9 (chr)
190 LOAD_NAME 6 (result)
192 CALL_FUNCTION 2
194 CALL_METHOD 1
196 STORE_NAME 10 (result_text)
198 LOAD_CONST 40 (None)
200 RETURN_VALUE
This segment of code maps the ASCII values from the result list we ceated in a previous line of code(line 3) back to their character value, ‘joins’ them, and saves the resulting string as result_text
It’s corresponding python code is
1
result_text = ''.join(map(chr, result))
Line 8
We add a final line of our own to the code to read the results from the previous lines.
A simple print will do.
1
print(result_text)
Final code
The complete code looks like this.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
input_list = [4, 54, 41, 0, 112, 32, 25, 49, 33, 3, 0, 0, 57, 32, 108, 23, 48, 4, 9, 70, 7, 110, 36, 8, 108, 7, 49, 10, 4, 86, 43, 108, 122, 14, 2, 71, 62, 115, 88, 78]
key_str = "t_Jo3"
key_list = [ord(char) for char in key_str]
while len(key_list) < len(input_list):
key_list.extend(key_list)
result = [a^b for a,b in zip(input_list, key_list)]
result_text = ''.join(map(chr, result))
print(result_text)

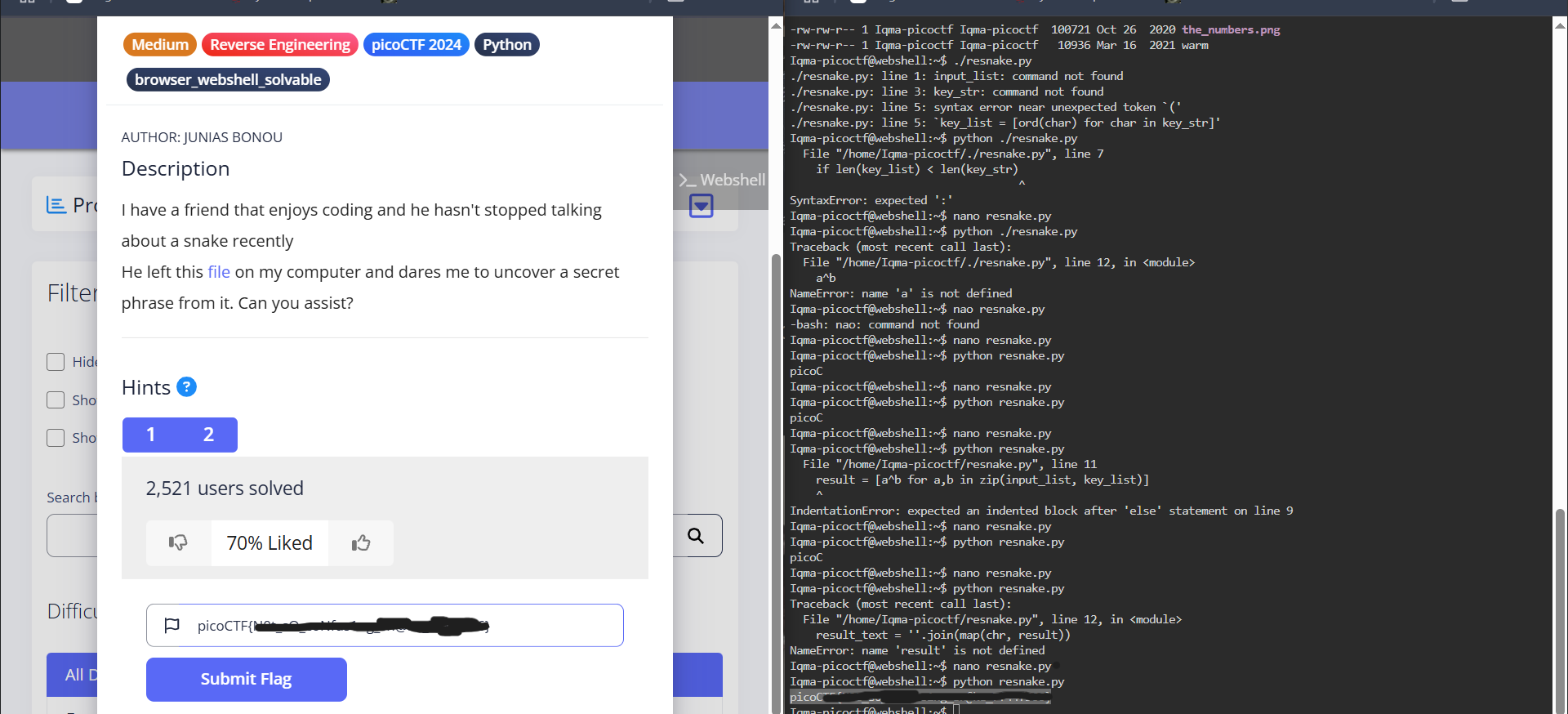

After running the code I got the flag.
